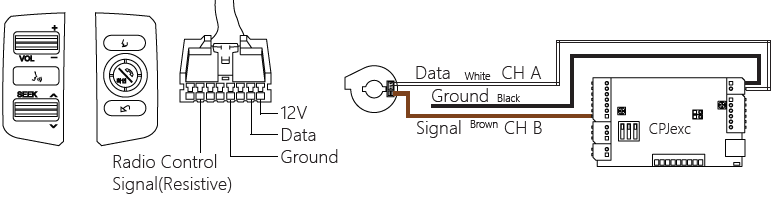

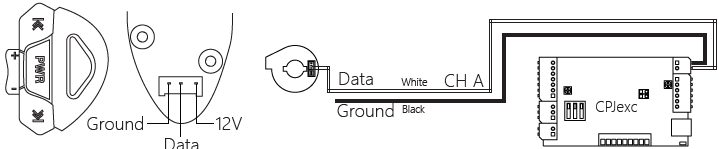

Connect Radio control signal to Channel A.

Turn off both DIP switch 1 and 2.
cpjexc-renault-sm_2

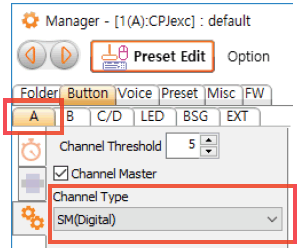

Choose [Button] -> [ A ]-> [Configure], select Channel Type as SM(Digital).
