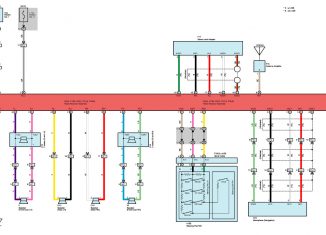

Toyota Corolla 2004 cruise control has resistive steering wheel remote controls. It can be connected directly to CarPC JoyCon EX.
Tag: wiring diagram
[CPJex]Scion TC 2006
Scion TC 2006 has resistive steering wheel remote controls. It can be connected directly to CarPC JoyCon EX. If SW1 and SW2 resistance value is duplicated, a resistor is needed to avoid duplication. If you use CarPC JoyCon EX, you don't need a resistor to avoid duplication. 7(SW1) -> DATA of CarPC JoyCon EX

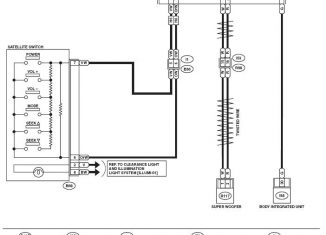

[CPJex]Subaru Impreza 2008
Subaru Impreza 2008 has resistive steering wheel remote controls. It can be connected directly to CarPC JoyCon EX. This links will help you to install CarpC JoyCon EX for the steering wheel remote controls of Subaru Impreza 2008 http://www.subaruforester.org/vbulletin/727950-post61.html http://www.subaruforester.org/vbulletin/f77/installing-stock-steering-wheel-audio-controls-69816/#post773906 http://www.iwsti.com/forums/gr-i-c-e-security/133987-2008-stereo-install-wiring-diagram.html http://forums.nasioc.com/forums/showpost.php?p=23485534&postcount=21 http://forums.nasioc.com/forums/showthread.php?p=10308972&postcount=11 http://legacygt.com/forums/showthread.php/supermooses-audio-install-picture-heavy-93803.html?s=842e025d22dd2f65f6e1d9598b822673&t=93803 http://www.scoobymods.com/wrx-steering-wheel-impreza-t127.html?s=b6c5b021250bbd49cf4ca2e7c482a5f7&p=18882 http://www.3gwrx.com/forum/index.php?topic=5082.0

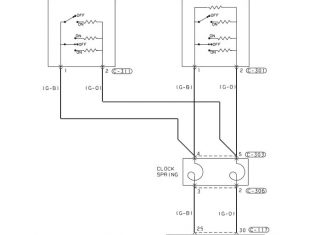

[CPJex]Mitsubishi 380

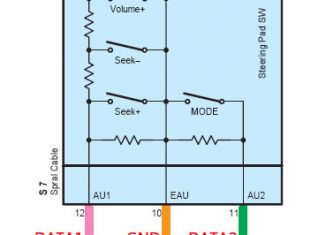

[CPJex]Toyota Camry 2010
Toyota Camry 2010 has resistive steering wheel remote controls. It can be connected directly to CarPC JoyCon EX. Connect W wire and G wire to CarPC JoyCon's DATA(white). Connect B wire to CarPC JoyCon's GND(black). If you use CarPC JoyCon EX, you don't need a resistor to avoid duplication. 7(SW1) -> DATA of CarPC JoyCon

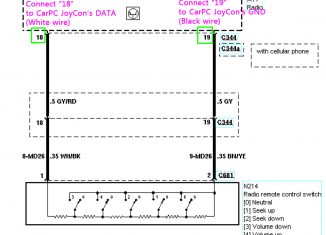

[CPJex]Alfa Romeo 156 2.0 JTS
Alfa Romeo 156 2.0 JTS has resistive steering wheel remote controls. It can be connected directly to CarPC JoyCon EX. The resistance value is: RC-A: Mute : 390 Vol Up : 170 Vol Down : 70 RC-B: SRC : 391 Forward : 171 Backward :71 Left and right resistance value is duplicated, so a resistor is needed to avoid duplication. If you

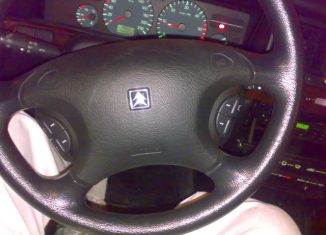

[CPJex]Citroen Xantia

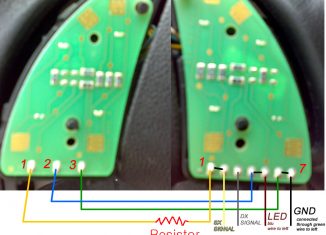

[CPJex]Fiat GrandePunto
Fiat GrandePunto has resistive steering wheel remote controls. It can be connected directly to CarPC JoyCon EX. DX_SIGNAL(left) and SX_SIGNAL(right) resistance value is duplicated, so a resistor is needed to avoid duplication. If you use CarPC JoyCon EX, you don't need a resistor to avoid duplication. SX_SIGNAL -> DATA of CarPC JoyCon EX channel
[CPJex]Fiesta model 2002-2008

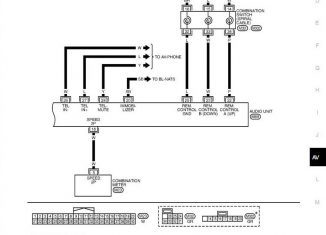

[CPJex]Nissan Navara 2007
Nissan Navara 2007 has resistive steering wheel remote controls. It can be connected directly to CarPC JoyCon EX. If resistance value of L(15) and W(14) is duplicated, one resistor(for example 6.8k) is required to avoid duplication. If you use CarPC JoyCon EX, you don't need a resistor to avoid duplication. 15(L) -> DATA of
