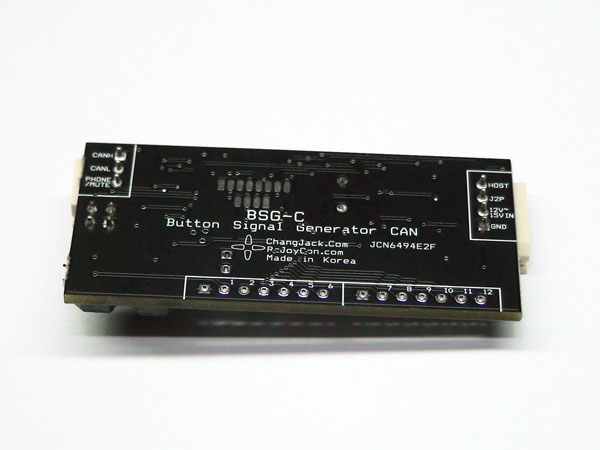

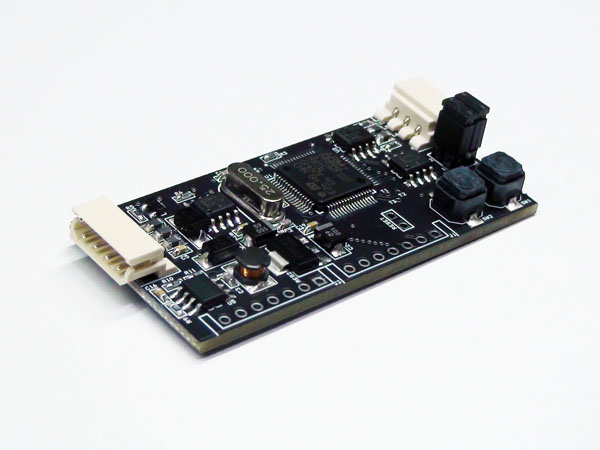

BSGc(Button Signal Generator CAN)
BSGc enables you to control both car PC and car stereo with one steering wheel controls.
Feature of BSGc(Button Signal Generator CAN)
– Generates CAN signal for car stereo remote control.
– Controlled by CarPC Interface Exc though J2P BUS
– Generates Phone/Mute signal
– SMPS power supplier circuit(Ultra low heat emission)
User Guide
https://www.exinterface.com/d/man/bsgc/BSGc_UserGuide_eng.pdf
Easy configuration at Interface Manager.
Online / Offline Firmware update is provided.
Could not find this product among the distributors listed on your website.
Can i buy both CPJexc and BSGc directly from you?
Hello
You buy it on ebay.
I don’t see it available on eBay. Can you provide a link or product ID?
https://www.ebay.com/itm/321522485180

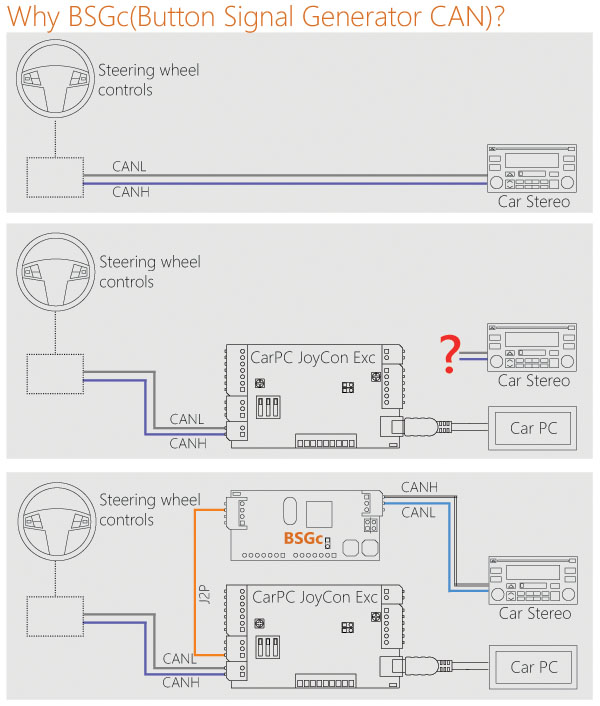

Using this sites diagram at the bottom.
http://www.rcjoycon.com/bsgc/
The one that shows the steering wheel controls to the joycon exc and then from the exc to the BSG-c and then to the radio through CAN. Could I replace the radio with the AC control module and control the AC using a tablet. I know I’ll have to figure out how to make a button on the tablet that would control the output of the ac but I think I can figure that part out.
You can output a CAN message to a vehicle with CPJexc + BSGc.
This is possible:
Button press -> CPJexc -> BSGc -> Vehicle.
But this is not possible yet.
Android App -> CPJexc -> BSGc -> Vehicle.
